Sampled channels: 34
Timing mode sample rate: 1KHz to 500MHz (uses LogicPort internal clock)
State mode sample rate: 0 to 200MHz (clock provided by circuit under test)
Sample buffer: 34 x 2048 samples
Maximum sample compression: 2^33 to 1 (sample rates to 200MHz)
Trigger sequencer: 250MHz max, 4ns minimum pulse width
Trigger event counters: 20 bits, range 1 to 1,048,576 for each trigger level
Input impedance: 200KΩ, paralleled by <5pF
Frequency counter range: 300MHz with 10Hz resolution, 4 channels
Threshold range: adjustable +6 to -6 volts with 50mv resolution
Threshold accuracy: +/-(100mV + 5% of setting)
Channel to channel skew: 0.6ns typical, 1.0ns max
State mode Setup/Hold times: 2.0/0ns, window adjustable +/-2.5ns
Input sensitivity: 0.25Vpp @50MHz, 0.5Vpp @150MHz, 0.8Vpp @250MHz
Input dynamic range: 10 volts peak-peak
Maximum input: +/-40 volts DC, 15 volts peak-peak AC
Timebase accuracy: +/-0.005% over full temperature range
Input Probe: Teflon insulated leads terminated with female contacts
                        compatible with 0.025"-0.030" round or square pins.
Power supply current: 200 milliamps max (supplied by USB)
Temperature range: operating +5° to +50°C, storage -10 ° to +65 ° C
Minimum system requirements:
    Pentium II or better (400MHz or faster recommended)
    32MB available memory
    20MB available disk space
    Display resolution at least 800 x 600 (1024 x 768 recommended)
    USB 1.1 or 2.0 port
LogicPort is compatible with the following operating systems:
    Windows 98
    Windows 98 Second Edition
    Windows ME
    Windows 2000
    Windows XP (32 bit & 64 bit versions)
    Windows Vista
    Windows 7 (32 bit & 64 bit versions)
* Specifications subject to change without notice

Back to LogicPort page
Intronix logo

LogicPort and screen

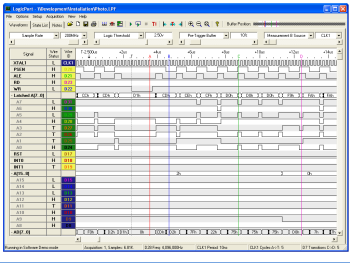

Screen shot 2 small - click to enlarge
